YAE Series level switches

Explosion-proof products that renew the image of conventional capacitive level switches

Introduction

  • Ideal for detecting liquids, slurries, corrosive liquids, powders, interfaces, and foam.
  • Eliminates problems such as adhesion and other problems such as float type and electrode type.
  • It can be used in harsh environments such as high temperature, low temperature, high pressure, vacuum, etc.
  • Compatible with most measured objects, and the disadvantages of the conventional capacitive type have been eliminated.

    • Main Features

  • Cancels and detects even strong adhesion.It can also handle adhesion of conductive liquids such as sludge, chocolate, ready-mixed concrete, etc. It can also handle adhesion of powders and granules, adhesives, and other strong adhesives.
  • Suitable for harsh conditions such as ultra-high and cryogenic temperatures.Suitable for difficult operating environments such as high temperature, high pressure, low temperature, vacuum, vibration, and static electricity resistance. It can be used at ultra-high temperatures of 300°C or higher and cryogenic temperatures of -200°C.
  • AC/DC free power supply, non-contact output also available.A wide range of free power supplies from 20 to 250 V AC/DC are available worldwide. It supports contact output as well as non-contact output (NPN/PNP) and sequencer output.
  • Fail-safe in case of surges or breakdowns.A delay function is also included to handle surging and chattering. A fail-safe function is also included as standard in case of failure.
  • Compliant with various certification standards.

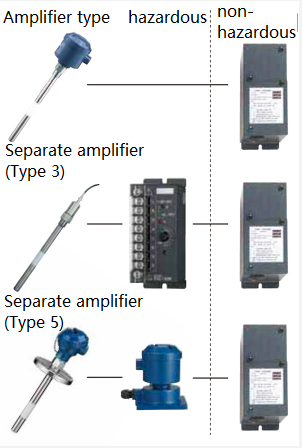

    • Unit configuration

  • The unit configuration is used by connecting the "sensor section" and the "barrier section".
    • yamaden level switches YAE series

    Specifications

    yamaden level switches YAE seriesyamaden level switches YAE seriesyamaden level switches YAE series
